High-Density T2 Copper Braided Flexible Connector with Zero-Resistance Bond for Precision Resistance Welding

Price : exw usd 3.5/kilograms

Customization Service : 100% Based on Customer's Drawings

Certification : ISO 9001

Operating Range : -40°C to +300°C

Standard Compliance : RoHS & Industrial Grade Quality Control

Place of Origin : Jiangsu, China (Mainland)

Delivery Time : 7-45 work days

Surface Treatment : Bare Copper / Tin-Plated / Silver-Plated

MOQ : 2

Precision Tolerance : ± 0.1mm

Supply Ability : 3000 sets/ month

Model Number : standard or customized

Payment Terms : L/C,T/T

Core Advantage : High Conductivity & Zero-Resistance Bond

Brand Name : BLM

Manufacturing Tech : Advanced Precision Cold-Pressing

Packaging Details : wooden case

Purity Grade : T2 Oxygen-Free Copper (≥ 99.9%)

Contact Now

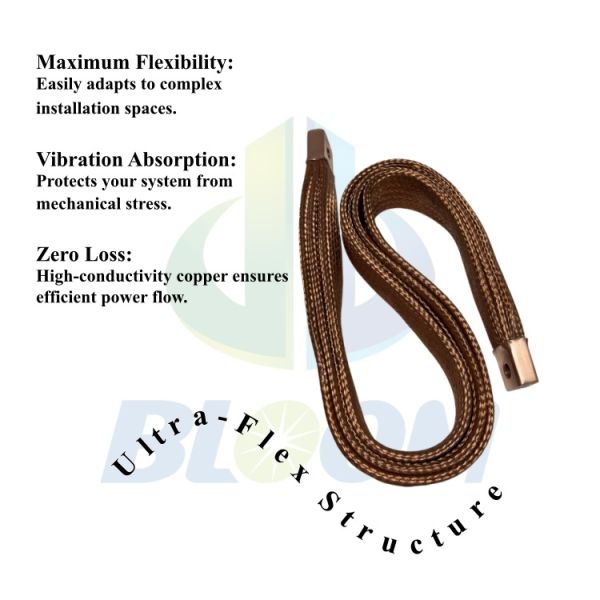

High-Density T2 Copper Braided Flexible Connector for Resistance Welding
High-Conductivity Flexible Copper Braided Connector (Air-Cooled Cable)

Product Overview: Bloom's flexible copper braided connectors are specifically engineered for high-frequency resistance welding and industrial power systems. By utilizing ultra-pure T2 copper and advanced cold-pressing technology, we deliver a connection solution that maximizes electrical efficiency while withstanding extreme physical stress and thermal expansion.

Technical Specifications
Parameter Specification
Material T2 Pure Oxygen-Free Copper (Purity ≥ 99.9%)
Manufacturing Process High-Pressure Cold Pressing (Precision Terminals)
Cross-Sectional Area Customizable (e.g., 200sq, 500sq, 800sq mm)
Resistivity ≤ 0.0172 Ω*mm²/m (at 20°C)
Terminal Treatment Bare Copper / Tin-Plated / Silver-Plated
Working Temperature -40°C to +300°C
Precision Tolerance ± 0.1mm (or based on technical drawings)
Customization 100% Production based on Customer Drawings
Core Advantages
Zero-Resistance Bond: Our precision cold-pressing technology fuses the terminal and the copper braid at a molecular level, eliminating the interface resistance found in soldered alternatives.
Exceptional Flexibility: The high-density multi-strand weave allows the cable to endure millions of bending cycles in robotic welding arms without fatigue.
Optimized Air Cooling: Specifically designed for "Waterless" environments, the large surface area of the braid ensures efficient heat dissipation.
100% Drawing-Based Customization: Bloom produces every unit exactly to your technical drawings.
